Products Description
Fast and Cost-Effective Installation

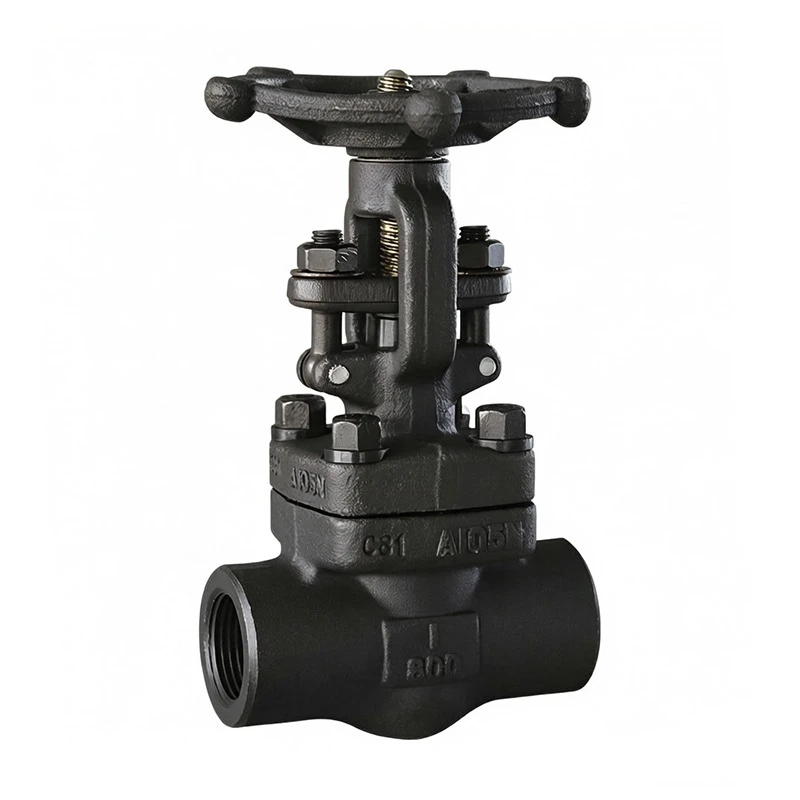

The gate valve threaded type is perfect for small-bore piping systems. These are DN15 to DN50 (up to 2 inches). Threaded connections are faster to install than flanges. They do not need welding. They also cost less. This makes them a smart choice for many jobs.
Precision Threads for a Secure Fit
Chenxiang offers this threaded gate valve with NPT, Rc, or G threads. Our high-precision CNC thread lathes cut the threads. They meet the required standards. The models are Z11H, Z11Y, and Z11W. The body materials are forged steel A105 (carbon steel), F304/F316L (stainless steel), F22 (chrome-moly steel for high heat), and LCB (low temperature). The drives are manual, gear, pneumatic, electric, and hydraulic. The connections are NPT, Rc, and G threads. This valve is widely used in branch lines and instrument piping. It serves oil, chemical, natural gas, light industry, power,制药, metallurgy, water supply, and defense. The media include compressed air, natural gas, coal gas, LPG, nitrogen, oxygen, hydrogen, steam, flue gas, and other process gases.
Technical Data
The pressure range is PN16 to PN420 (150LB to 2500LB). The size range is DN15 to DN50 (1/2" to 2"). The working temperature is -29°C to 500°C. The hard seal materials are H (Cr13 stainless steel), W (body seal), and Y (STL overlay).
|
Parameter |
Range |
|
Pressure Range |
PN16-PN420 / 150LB-2500LB |
|
Size Range |
DN15-DN50 / 1/2"-2" |
|
Working Temperature |
-29°C ~ 500°C |
Quality Thread Inspection
Thread quality is key for a good seal. We use thread gauges to check every batch. This ensures the size and tolerance meet ANSI and national thread standards. Every threaded gate valve gets a thread size check and a pressure seal test before it leaves. We use a submersible tester. The valve goes under water. We look for bubbles at the body and the threaded joint. This proves the thread seal is good. An ultrasonic cleaner removes chips and cutting fluid from the threads. This keeps the valve clean inside. Chenxiang Valve has CE certification. Our products can enter the EU market.
