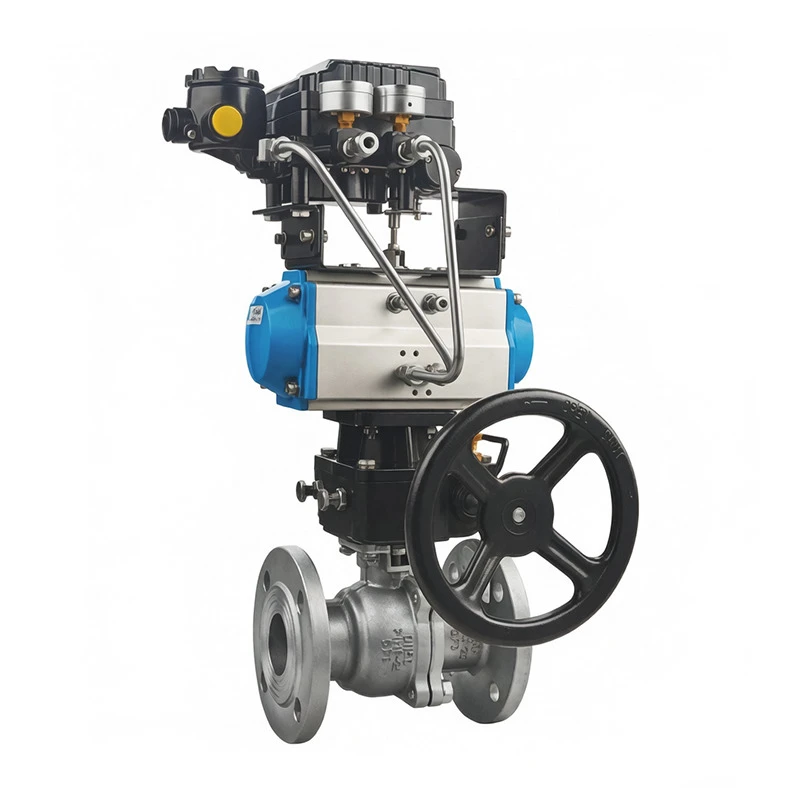

Pneumatic Flanged Ball Valve

Zhejiang Chenxiang Valve Co., Ltd. presents our product for challenging operating environments. Some facilities have unstable power supplies. Others are classified as explosion-proof zones. Many plants need centralized remote control. Pneumatic valves offer unique advantages in these situations. They only need compressed air to operate. They are not affected by power interruptions. The pneumatic actuator itself produces no electrical sparks. This makes it safe for flammable and explosive environments. Our pneumatic flanged ball valve uses high-quality pneumatic actuators. We select the actuator based on valve torque and air supply pressure (0.4-0.8MPa). Our engineers calculate the appropriate actuator cylinder diameter precisely. This ensures reliable open and close action. This product serves petroleum, chemical, natural gas, light industry, power, pharmaceutical, metallurgy, and water supply sectors. It is especially useful for LNG filling stations, chemical reactors, and oil/gas gathering systems that need frequent operation or remote control. The media includes compressed air, natural gas, coal gas, LPG, nitrogen, oxygen, hydrogen, steam, flue gas, and various process tail gases. Our models include Q641F, Q641PEEK, Q647F, Q647PEEK, and Q647Y.

Our product uses body materials such as A105, F304, F316L, LF2, F11, F22, F53, F55, 4A, 5A, Inconel, Monel, 2205, 2507, 904L, copper alloy, titanium alloy, Hastelloy, and nickel alloy. The drive is pneumatic. You can also add a manual worm gear as a backup operation method. Connections are RF, FM, G, M, or RTJ. The structure is floating ball or trunnion ball. Trunnion types meet DIB-1 and DIB-2 standards. Soft seal materials include PTFE, RPTFE, Nylon, Devilon, PEEK, PCTFE, M111, MOLON, and POM. Hard seal materials include Ni60, STL, WC, and CRC. Every product undergoes pneumatic seal testing and action testing before shipment. We simulate the on-site air supply pressure to verify the valve's open/close time. Our professional torque tester checks whether the actuator output torque meets the valve's operating requirements. We can add accessories like solenoid valves, limit switches, and valve positioners according to your needs. A laser printer marks the model number, interface size, and manufacturing date on each actuator. This helps with on-site maintenance and traceability.

Our pneumatic flanged ball valve provides safe, reliable remote control for your critical processes. The pneumatic drive ensures operation even during power outages. We provide a 1-year warranty. Export products use wooden case packaging. Trade terms are EXW and FOB. Choose our product for safe, spark-free automation in your hazardous areas.
