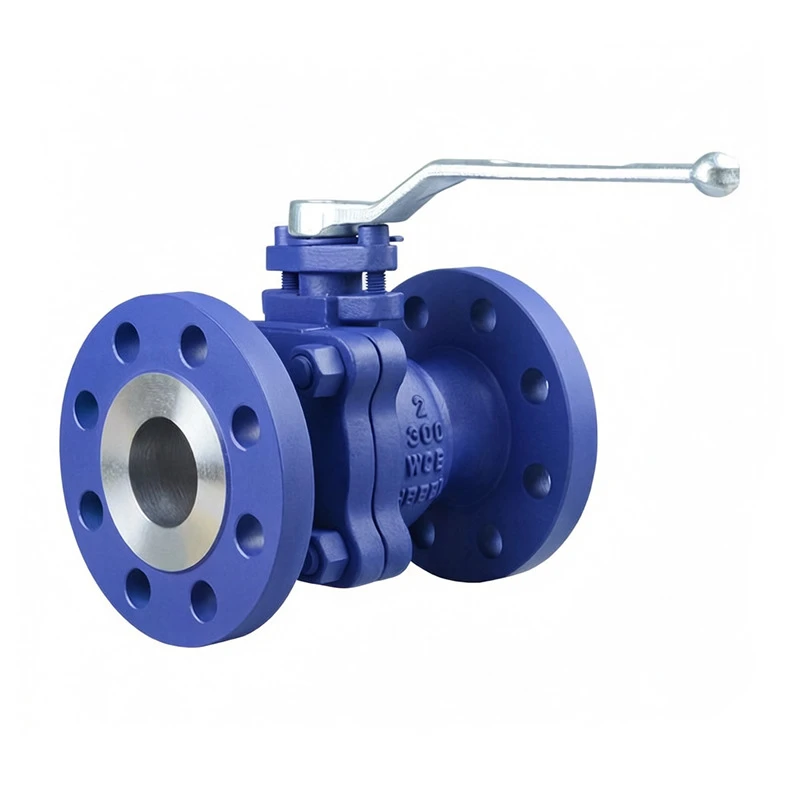

ANSI Standard Flanged Ball Valve

Zhejiang Chenxiang Valve Co., Ltd. offers our ANSI standard flanged ball valve for the global market. Many oil, gas, and chemical projects require valves that meet US standards. Our product is fully designed and manufactured according to American standards. The pressure ratings range from 150LB to 2500LB. Connection dimensions comply with ANSI B16.5. Face-to-face dimensions follow ANSI B16.10. Material chemical compositions meet ASTM standards. This product serves petroleum, chemical, natural gas, light industry, power, pharmaceutical, metallurgy, water supply, and military industries. It is ideal for export projects and international engineering contracts. It handles compressed air, natural gas, coal gas, LPG, nitrogen, oxygen, hydrogen, steam, flue gas, and various process tail gases. Our models include Q341F, Q347F, Q347N, Q347PEEK, and Q347Y.

Our product uses body materials such as A105, F304, F316L, LF2, F11, F22, F53, F55, 4A, 5A, Inconel, Monel, 2205, 2507, 904L, copper alloy, titanium alloy, Hastelloy, and nickel alloy. You can choose manual, worm gear, pneumatic, electric, or hydraulic drives. Connections are RF, FM, G, M, or RTJ, all meeting ANSI flange face standards. The structure is floating ball or trunnion ball. Trunnion types meet DIB-1 and DIB-2 standards. We use a direct-reading spectrometer to re-test the chemical composition of every batch of valve body material. This ensures that the materials meet ASTM standard requirements. Each product comes with an American standard material certificate and pressure test report. For special requirements like fire-safe and anti-static, we can perform fire-safe structure inspections and anti-static tests according to API 607 standards.

Chenxiang Valve has exported tens of thousands of products to date. Our products cover markets in Southeast Asia, the Middle East, and South America. Each valve comes with traceable inspection documents. We provide a 1-year warranty. Export products use wooden case packaging. Trade terms are EXW and FOB. Choose our ANSI standard flanged ball valve for seamless integration into your international projects.
